ASI290MM Mini camera integrates Sony IMX290 1/3″ sensor (5.6 mm x 3.2 mm). It is a new model in the “mini”-series of cameras from ZWO. This camera has 1936 x 1096 pixels. The pixel size is 2.9 μm x 2.9 μm. This camera provides 12-bit ADC and its QE peak is over 80%.
Astrophotography Performance
ASI290MM mini camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.
High QE
Regarding the relative QE Curve, we estimate the Peak Value is about 80%.
290Mini vs. 290MM
Compared with the ASI290MM camera, the new ASI290MM Mini has a sleeker design, less weight, and it can reach focus at the same position as an eyepiece.
USB2.0Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)
ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

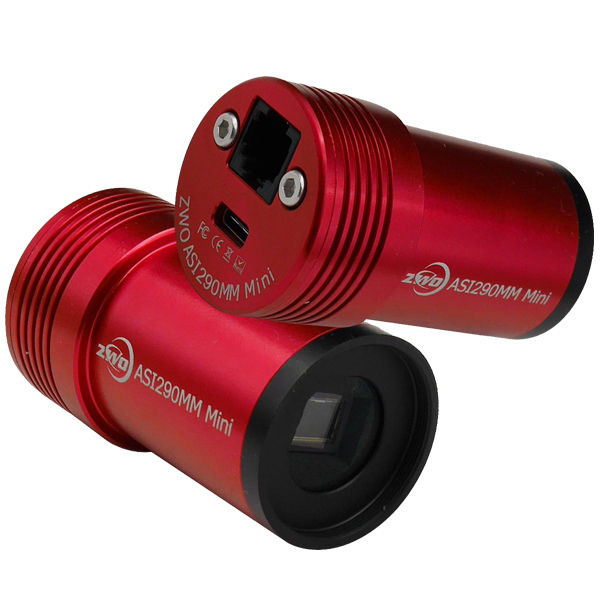

ZWO ASI290MM Mini (mono)
Specifications
Sensor: 1/2.8″ CMOS IMX290/IMX291
Resolution: 2.1Mega Pixels 1936×1096
Pixel Size: 2.9µm
Exposure Range: 32µs-2000s
ROI: Supported
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
ST4 Guider Port: Yes
Focus Distance to Sensor: 8.5mm
Shutter Type: Rolling Shutter
Protect window: AR coated window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB2.0
Bit rate: 12bit output(12bit ADC)
Adaptor:1.25″ / M28.5X0.6
Dimension: φ36mm X 61mm
Weight: 60g or 3.1 ounces (without lens)
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%
Supported resolution
USB2.0 MAX FPS
1936×1096: 20.4
1280×960: 35.3
640×480: 141.5
320×240: 355.9
2X2Bin :968×548: 20.4
More resolutions can be user defined
